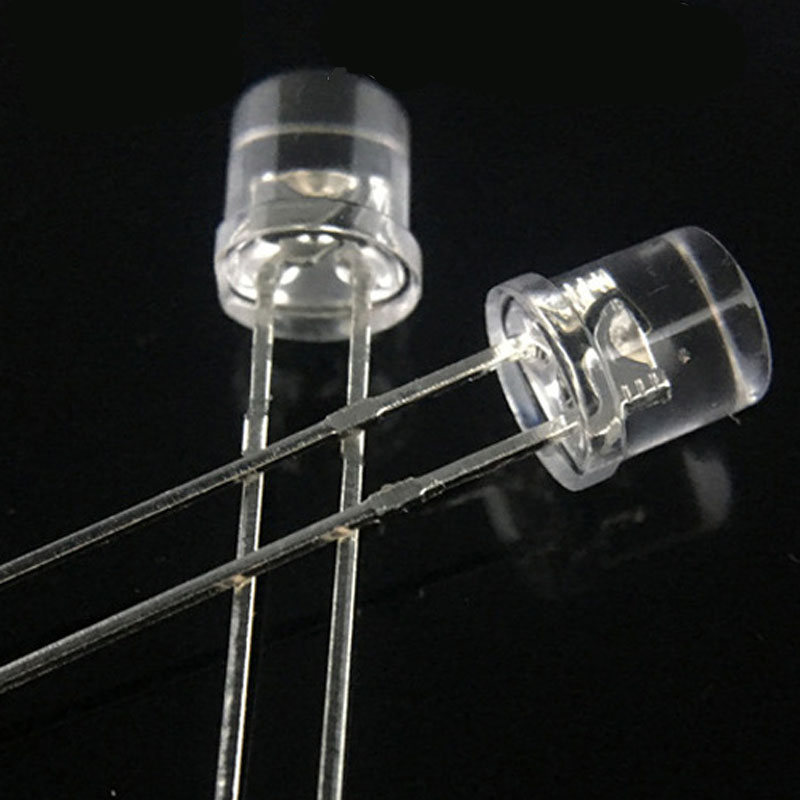

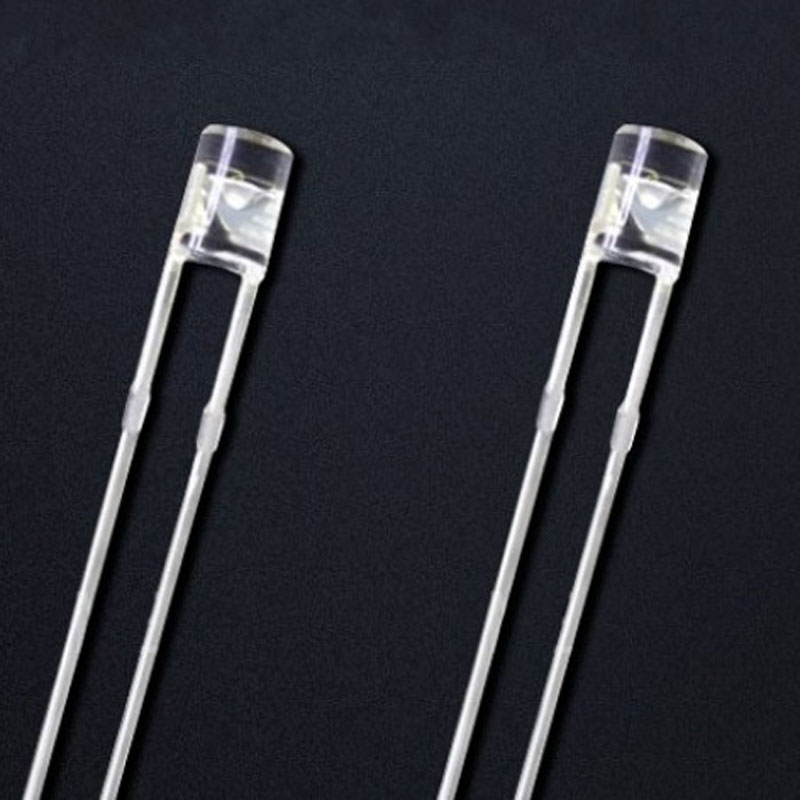

Item | Flat top UV LED |
---|---|
Current | 20mA |
Votlage | 3.0-3.6V |
Size | 3mm 5mm |
Brightness | Standard brightness High brightness |
Wavelength available | 365-370nm 370-380nm 380-390nm 390-400nm 400-405nm 405-410nm 410-415nm 415-420nm 420-425nm |
Lens avaialble | Water clear lens White diffused |
Pins | Short pins 16/18mm Standard pins 25/27mm |
Packing | ESD bag Reel |
Flange | With Without |
